Description

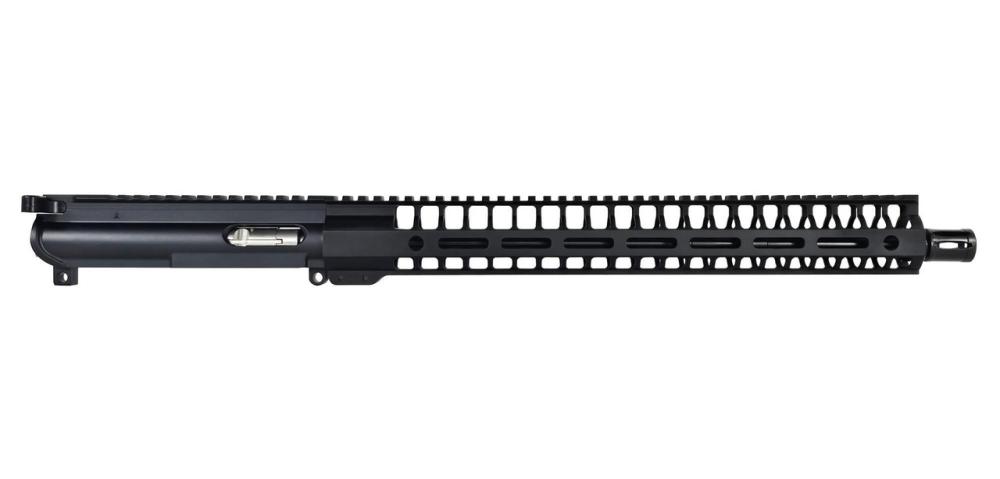

Builder's Grade Complete 16" .22LR Lightweight Pencil Upper Receiver | A2 | 15" BX Series M-LOK Handguard | with Bolt Carrier Group and Charging Handle
**This Product Ships ASSEMBLED - BCG & Charging Handle Removed to Prevent Damage During Shipping***
This complete 16-inch M-LOK upper receiver comes with a full picatinny 15-inch free float handguard and is built with only the best mil-spec components. The heart of this upper is comprised of a 4150 barrel and the bolt is made of all stainless steel construction and we use an anti-jam dedicated 22 charging handle.
Bolt Carrier Group:
Stainless Steel Construction
Designed to work with all CMMG and RTB .22LR barrels
long lasting and reliable
Upper Receiver:
Machined from a Mil-Spec 7075 T6 forging Hard Coat Anodized per Mil-A-8625F, Type III
M4 Feed ramps
Made in the U.S.A.
Handguard:
15" free float handguard
MIL-STD 1913 Picatinny rail on top
8 M-Lok slots on 3 sides
Precision Machined 6000 Series aluminum, for high strength and weight savings
Hard Coat Anodized per Mil-A-8625F, Type III, Class 2
Clamp on system for easy assembly
Steel Barrel nut to resist movement under heat
14.5 oz with barrel nut and hardware
1.35" Inside Diameter
1.63" Wide
Made in USA
Charging Handle:
Durable polymer construction with a filled-in, reinforced channel
.22 ARC Mil-Spec style
Anti-Jam Charging Handle Assembly
AMMO RECOMMENDATION: For in-house testing, we utilize CCI .22LR Mini-Mag 36 Grain Copper-Plated Hollow Point Varmint Ammo (1,260 FPS). We highly recommend this ammunition for use with all RTB .22 uppers. It is important to note that the use of underpowered or economy-grade ammunition may lead to less-than-optimal performance outcomes.
Please Note:
Uppers may present light fouling from our quality control process and/or test firing
Although .22lr AR builds do not utilize the functionality of a buffer or buffer spring, we still recommend using both to provide a stopping point/wall that prevents the 22 bolt carrier from moving rearward. Using a buffer and buffer spring will prevent light primer strikes. This is true for all Ciener/Atchisson 22 pattern platforms.
***Please allow an additional 2-3 business days of lead time as these uppers are made to order.***
