Description

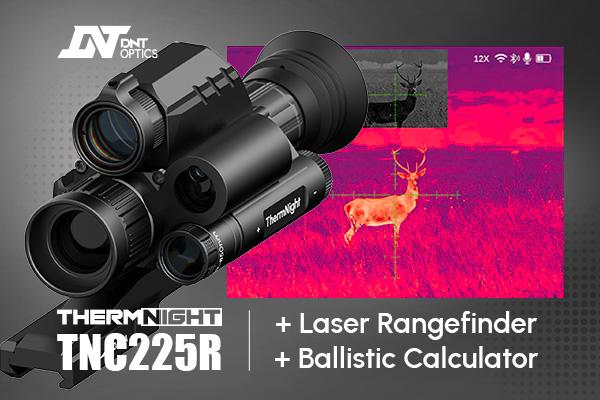

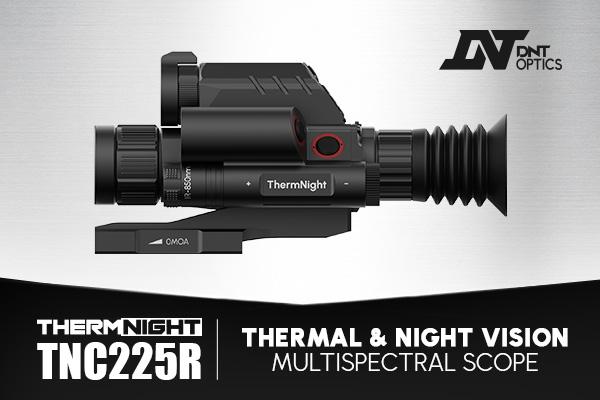

Featuring state-of-the-art thermal sensors for detecting targets and advanced high-definition digital night vision for identifying them, the TNC225R excels in delivering superior operational effectiveness in various environments and conditions.
ThermNight TNC225R comes with a highly sensitive 12um pixel detector and an advanced algorithm enhanced 256x192 resolution combined with NETD ≤ 25mK. This allows you to detect heat signatures at further distances and positive lD your target with digital NV before engaging.
Net Weight: 22.8oz
Dimensions: 6.7*3.3*3.1 Inches
Storage: Internal Storage, 32GB
LRF Maximum Measuring Range: 5-1100yards
WIFI/APP: Yes
Bluetooth: Yes
Ingress Protection: IP67
Operating Temperature: -4~122F
Shock Resistance: 800Gs
Display Type: Micro-OLED
Display Resolution: 1024*768 pixels
Frame Rate: 50FPS
Battery Type:18650 Battery(flat top)
Operating Time: 5h
External Power Supply:5V - Type C USB
THERMAL CHANNEL - Sensor Specifications
Resolution：256x192
Field of View(FOV): 7.03°x 5.28°
Frame Rate: 50FPS
Pixel Size:12x12um
NETD:≤25mk@25℃
Focal Length of Objective Lens:25mm
Base Magnification:3X
Digital Zoom:3X,6X,9X,12X
Image Sensor: Uncooled Infrared Image Sensor
VISIBLE LIGHT CHANNEL - Sensor Specifications
Resolution:1920*1080 pixels
Sensor Frame Rate:60FPS
Video Record Resolution:1024*768 pixels
VISIBLE LIGHT CHANNEL - Optical Specifications
Objective Lens Focal Length:52mm
Field of View(FOV):6.13°x 3.45°
Eye-Relief:45mm/1.8 Inches
Base Magnification:5X
Digital Zoom:5X,7.5X,10X,12X,15X,17.5X,20X
Diopter Adjustment:±5D
IR Wavelength:850/940nm
Infrared Power: Class 3R Eye Safe
