Description

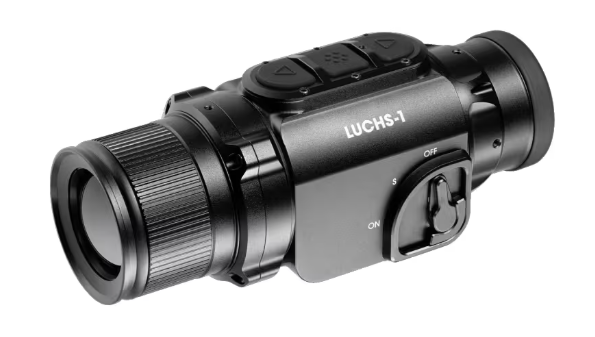

Liemke's Luchs-1 Thermal Clip-On Device gets its name from the Lynx (German: Luchs) – a fast, silent, nighttime predator with eyes that are six times more sensitive to light than humans. This allows the Lynx to detect prey from long distances in complete darkness. Liemke’s Luchs-1 is the technological embodiment of the Lynx, and allows users to experience darkness through the eyes of a nocturnal hunter.
The Luchs-1 pairs perfectly with the majority of universal and driven hunt scopes via adapter (sold separately), but also works as a handheld thermal monocular. It comes equipped with a powerful 12 µm 640x512 VOx uncooled microbolometer and a 35mm/F1.0 objective lens. The powerful sensor combined with the large objective lens allows the Luchs-1 to detect heat signatures from up to 1750 meters (1913 yards) away. Heat signatures are viewable in five color modes – White Hot, Black Hot, Extra Dark, Red Hot, and Rainbow – as well as two “Sun” and “Rain” image modes to ensure optimum image rendition in different weather conditions. When attached to a riflescope, the Luchs-1 offers a generous field of view that completely fills the scope’s view even at low magnification. This makes the Luchs-1 ideal for use in dense forests and wide open fields alike.
In addition to its impressive thermal imaging capabilities, the Luchs-1 also offers intuitive operation. A three-position switch is easy to use even in the dark or when wearing gloves, and individually configurable modes provides a custom control set. Other features of the Luchs-1 include multimedia connectivity. This function can be used to share videos, photos, and live stream to a compatible device using the LIEMKE App. In addition, the Luchs-1 offers an extended battery life of 9 hours, and can be charged quickly through a USB-C port.
Features of the Luchs-1 Thermal Monocular:
Can be used as a thermal clip-on or handheld monocular
12 µm VOx sensor with 640x512 pixels
35mm/F1.0 objective lens
Detection range: 1750 meters (1913 yards)
Color modes: White Hot, Black Hot, Extra Dark, Red Hot, and Rainbow
Intuitive controls for fast operation
Customizable operations mode
Multimedia connectivity via LIEMKE App
9 hour battery life
Compatible Mounts:
ADM AD-170 Quick Release Picatinny Rail Mount w/M5-0.8x 8mm Flat Head Screws
Liemke Base-Mount Multirail Picatinny Set LO-PICATINNYMULTIRAIL
Liemke Blaser-Base Mount for Merlin-35/42 & Luchs LO-BLASERMULTIRAIL
Liemke Upper-Mount Multirail for Merlin-35, Merlin-42 & Luchs LO-UPPERMOUNT
Liemke 30mm KA-MC Clip-On Mount Adapter LO-ADAPTER30
Liemke 44mm KA-MC Clip-On Mount Adapter LO-ADAPTER44
Liemke 46mm KA-MC Clip-On Mount Adapter LO-ADAPTER46
Liemke 48mm KA-MC Clip-On Mount Adapter LO-ADAPTER48
Liemke 51mm KA-MC Clip-On Mount Adapter LO-ADAPTER51
Liemke 52mm KA-MC Clip-On Mount Adapter LO-ADAPTER52
Liemke 54mm KA-MC Clip-On Mount Adapter LO-ADAPTER54
Liemke 56mm KA-MC Clip-On Mount Adapter LO-ADAPTER56
Liemke 57mm KA-MC Clip-On Mount Adapter LO-ADAPTER57
Liemke 58mm KA-MC Clip-On Mount Adapter LO-ADAPTER58
Liemke 59mm KA-MC Clip-On Mount Adapter LO-ADAPTER59
Liemke 60mm KA-MC Clip-On Mount Adapter LO-ADAPTER60
Liemke 61mm KA-MC Clip-On Mount Adapter LO-ADAPTER61
Liemke 62mm KA-MC Clip-On Mount Adapter LO-ADAPTER62
Liemke 65mm KA-MC Clip-On Mount Adapter LO-ADAPTER65
Liemke 67mm KA-MC Clip-On Mount Adapter LO-ADAPTER67
Specifications
SKU
LO-LUCHS1-Liemke
UPC
4066481040252
MPN
LO-LUCHS1
Display
1.024x768 OLED color display
Field of View
22 meters x 17,6 meters @ 100 meters
Magnification Range
1x (2x direct zoom available)
Size
6.3" x 2.51" x 2.55"
Optic Details
35mm / F1.0 objective lens
Thermal Sensitivity
NETD 50mK
Weight
20.4 Ounces
Item Condition
New
Product Type
Thermal
