Description

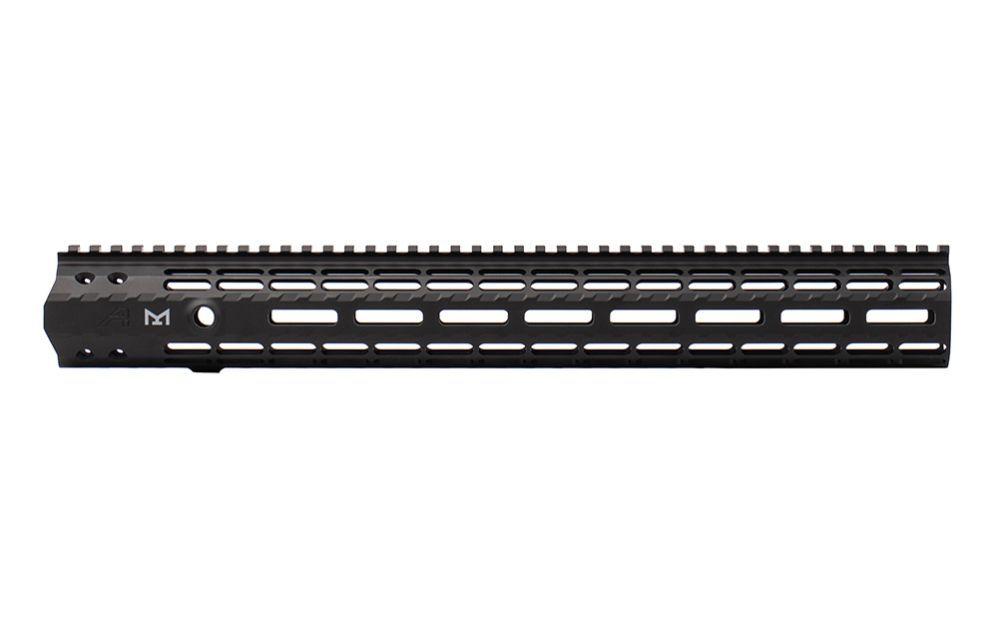

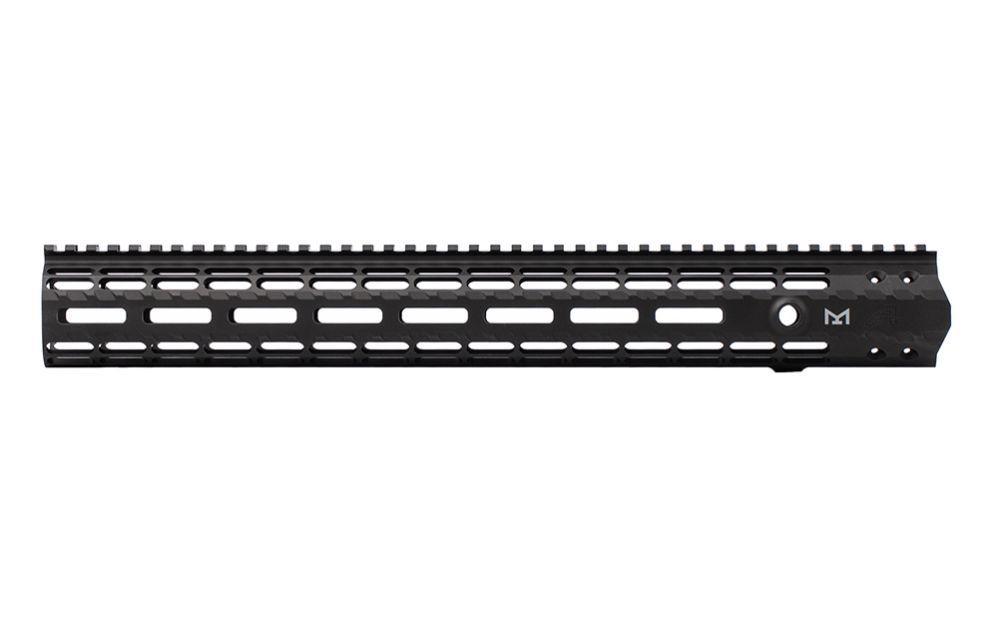

Our Enhanced M-LOK (EM) Handguards provide a lightweight free float design for your custom M5 .308 build. The M-LOK system allows advanced modularity past the current 1913 picatinny rail system. Machined to mil-spec dimensions and engineered to perfection, this handguard eliminates bulk while retaining strength and stability.
Features:
1pc free float design
Built in anti-rotation tabs
Scalloped rails
1.72″ inside diameter (from barrel nut cut to forward end) fits most muzzle devices and 1.5″ suppressors
1.78″ inside barrel nut cut area diameter
Compatible with low profile gas blocks
DPMS High Profile (.210) Tang
Gen 2 Feature – Quick disconnect sling socket at the 3, 6 and 9 o’clock positions
Gen 2 Feature – Additional milling along flats to aid with gripping and add visual appeal
Gen 2 Feature – New profile for the continuous picatinny top rail
Are you attaching this handguard to a standard threaded upper receiver?
Make sure to select “Yes” under the Handguard Barrel Nut option above (shims included). Our handguards use either the DPMS/Aero or Armalite interface and do not work with a standard barrel nut. If you are using our M5E1 Enhanced Upper Receiver, no additional pieces are needed. Purchased with a handguard, the M5 Barrel Nut is $20 ($40 when sold separately).
*Please note – This handguard is specific to the M5 .308/M5E1 platform. It is not compatible with the AR15/M4E1 platform.
Specifications:
Made In America? Yes
Platform M5
Series M5E1
Attachment Type M-LOK
Material Machined from 6061-T6 aluminum
Actual Handguard Lengths 12″ – 12.63″, 15″ – 14.94″, 16″ – 16.6″
Aero Precision rail lengths measure from end to end. This is the point of contact at the receiver to the end of the last picatinny slot at the muzzle.
Weight(s) 12″ – 9.9 oz / 15″ – 11.3 oz / 16.6″ –
Other Handguard Screw Torque – 25 in-lbs
