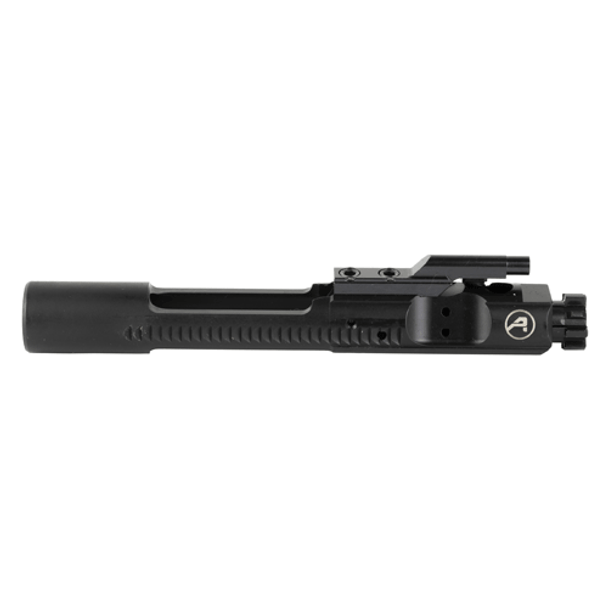

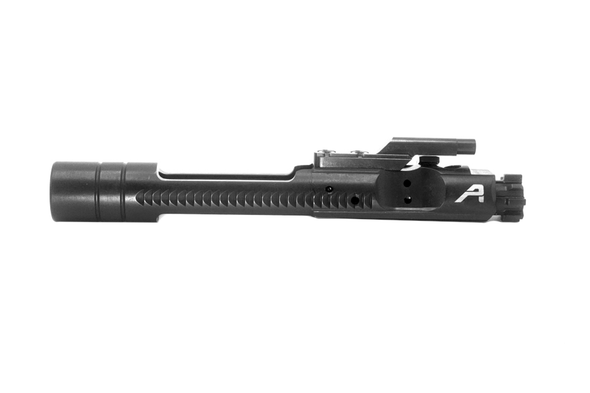

AERO Precision AR 15 5.56 PRO Bolt Carrier Group - Black Nitride - $119.95

Description

The AERO Precision AR 15 5.56 PRO Bolt Carrier Group in Black Nitride is a high-performance component designed to excel in the most demanding conditions. Built with meticulous attention to detail, this bolt carrier group is engineered to deliver exceptional reliability and durability.
Bolt

The bolt is one of the most important parts of the bolt carrier group. Machined from 9310 steel, a proprietary flash nitride process was chosen to ensure proper heat treatment on the bolt. When properly heat treated, 9310 steel provides superior strength and durability when compared to C158.

The cam pin channel is counter bored, eliminating the need for swaging. Swaging is the industry standard, however this process creates more stress on the bolt during manufacturing by displacing material rather than cutting it to the proper dimension from the start.

Machined from 9310 steel
Shot peened
MPI tested
Proper heat treatment ensured via proprietary flash-nitriding process

Cam Pin

Each PRO cam pin is precision ground after heat treatment to exacting specifications and given a nitride finish.

The cam pin features an engraved indexing mark on one side of the cam pin face; a concept that has been popularized by Chad Albrecht at School of the American Rifle. Cam pins traditionally wear more heavily on one side and when installed inconsistently can create excessive wear over time. When the cam pin becomes “loose” this can create excessive wear on the bolt itself shortening overall life. The indexing mark allows for consistent installation during maintenance which in turn reduces wear on not only the cam pin but the bolt over time to help extend overall service life.

Machined from 4140 steel
Precision ground after heat treatment
Engraved indexing mark
Nitride finish

Extractor

The extractor features a phosphate finish. The extractor is one of the few places where it is beneficial to have a “rougher” finish as it allows for more positive engagement with the case when pulling it out of the chamber.

Machined from 4140 steel
Heat treated
Shot peened
Phosphate finish

Carrier

Each PRO BCG utilizes a M16 cut carrier and features a nitride finish. Internal critical surfaces are precision ground to exacting tolerances to ensure optimal gas efficiency. The same machining standards are used for the carrier rails providing a super smooth fit and function from the start.

Machined from 8620 steel
M16 Cut Carrier
Nitride Finish
Critical surfaces precision ground for optimal gas efficiency and reliability

Gas Key

Machined from hardened 4140 steel
Torqued to spec with grade 8 hex fasteners
Properly staked to mil-spec
Nitride finish

Ejector

Machined from S7 tool steel

Firing Pin

Ground from 8640 steel
Nitride Finish
SKU: 9986
UPC: 815421029949
MPN: APRH101767C
